This guide will show you how to set up your S700 PhorestPay Card Terminal and pair it with Phorest.

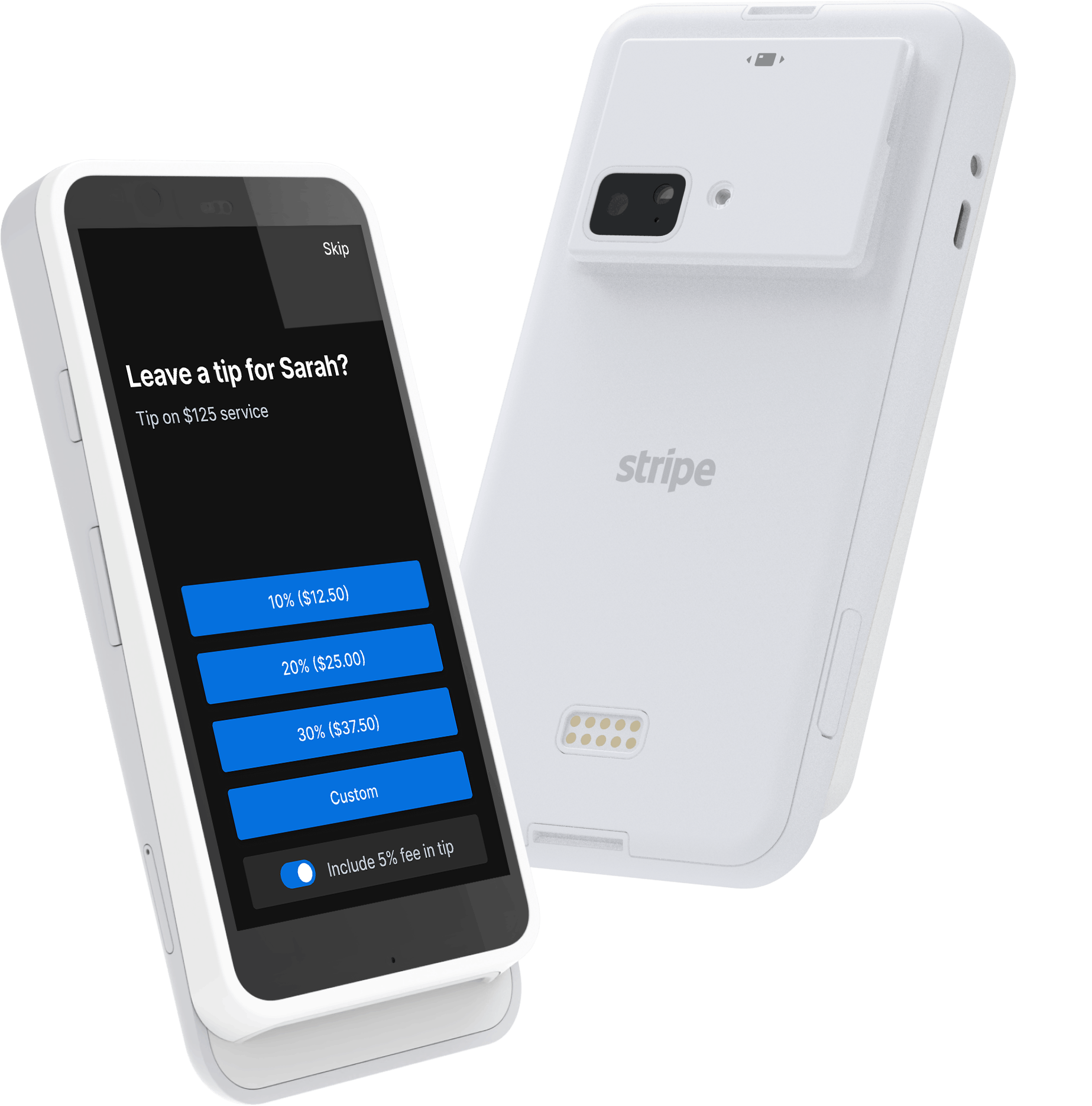

S700 Card Terminal
This setup guide is for the S700 Card Terminal device, which is shown in the image below. If you do not have this device, click here for the setup guide for your device.
In this Article
Initial Device Setup
🔋 We recommend charging the device fully before first use. The S700 requires a minimum of 12W of power to charge correctly. When fully charged, you should expect the battery to last about 15 hours.

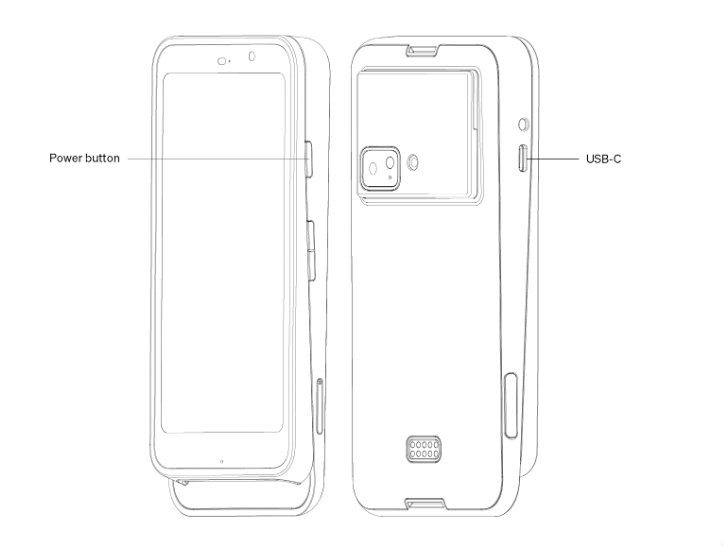

To turn on the card terminal, hold down the power button for 5 seconds until a purple Stripe screen appears.
Complete the initial setup by selecting your language and country, and then connect to a Wi-Fi network.
🛜 Your WiFi network must use WPA/WPA2/WPA3-Personal or WPA2/WPA3 EAP-PEAP Enterprise encryption and must be password-protected. IPv6-only networks are not supported.
Once you reach the Register this reader screen, you are ready to pair your card terminal with Phorest using the code displayed on-screen.
Pairing Your Card Terminal with Phorest

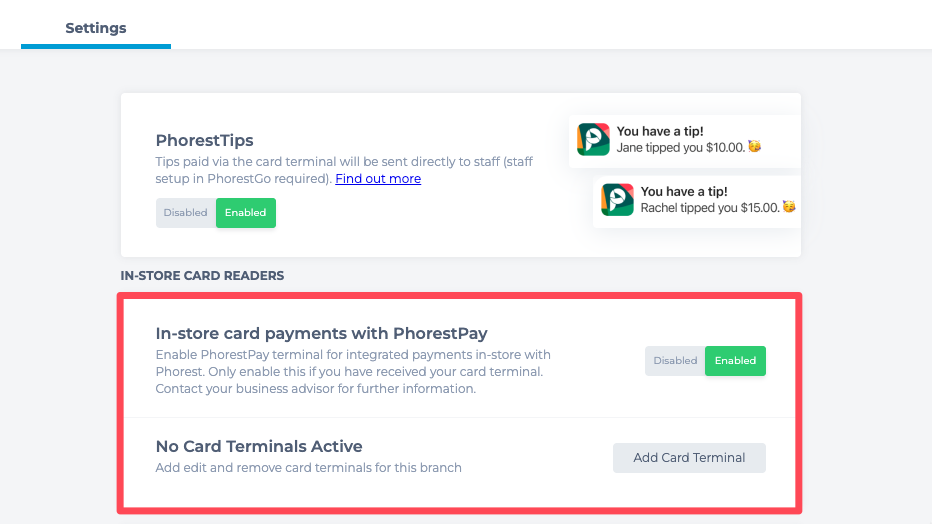

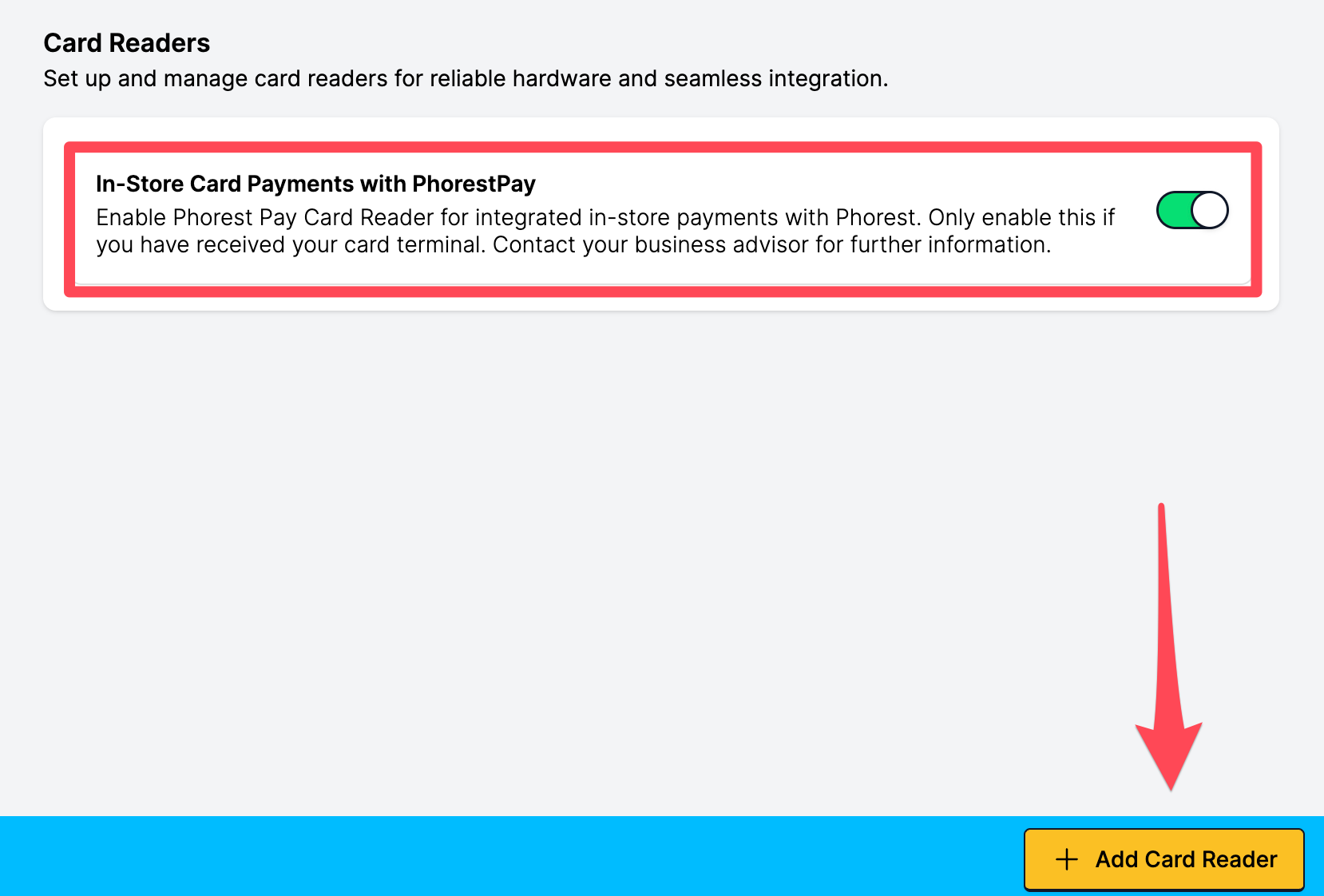

To pair your card terminal, open Phorest and go to Manager > PhorestPay > Settings, enable the In-store card payments with PhorestPay setting, then select Add Card Terminal.

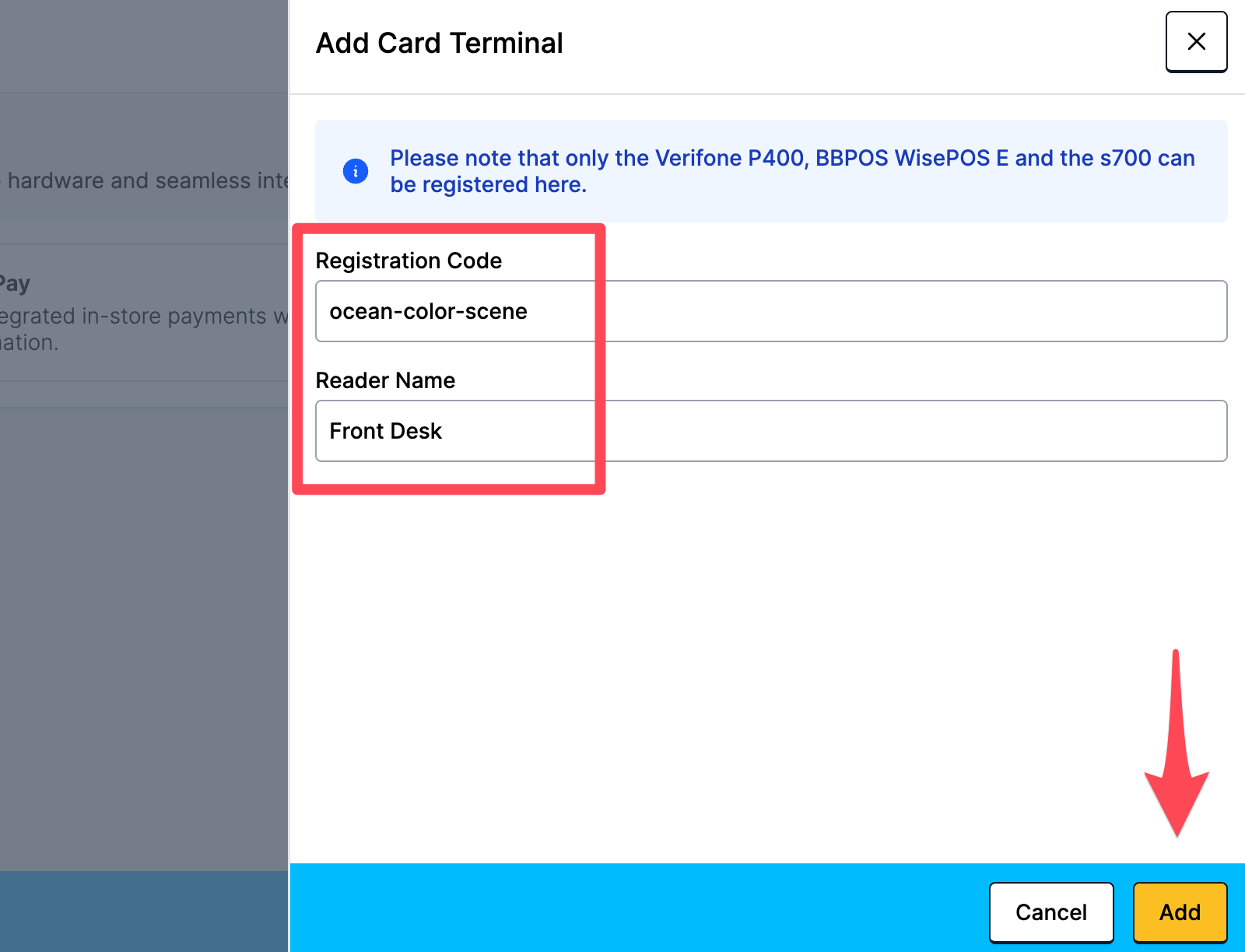

Click Add > Enter the pairing code that is displayed on your card terminal > give the card terminal a Name > Click Add.
The card terminal will now be paired with Phorest and automatically apply some updates.
⏳ These updates can take ~15 minutes to complete. While waiting, you can continue with the remaining steps in this guide.
Your Previous Card Terminal
If you previously used a different card terminal before PhorestPay, it’s recommended to create a new Payment Type for it.
Once your PhorestPay terminal is enabled, the default Credit and Debit payment types will automatically merge into a single Card payment type, which is used exclusively for processing payments through PhorestPay. Setting up a distinct Payment Type for your old terminal will make it easier to manage and refund past transactions, as refunds for those sales cannot be processed through PhorestPay.
Processing a sale

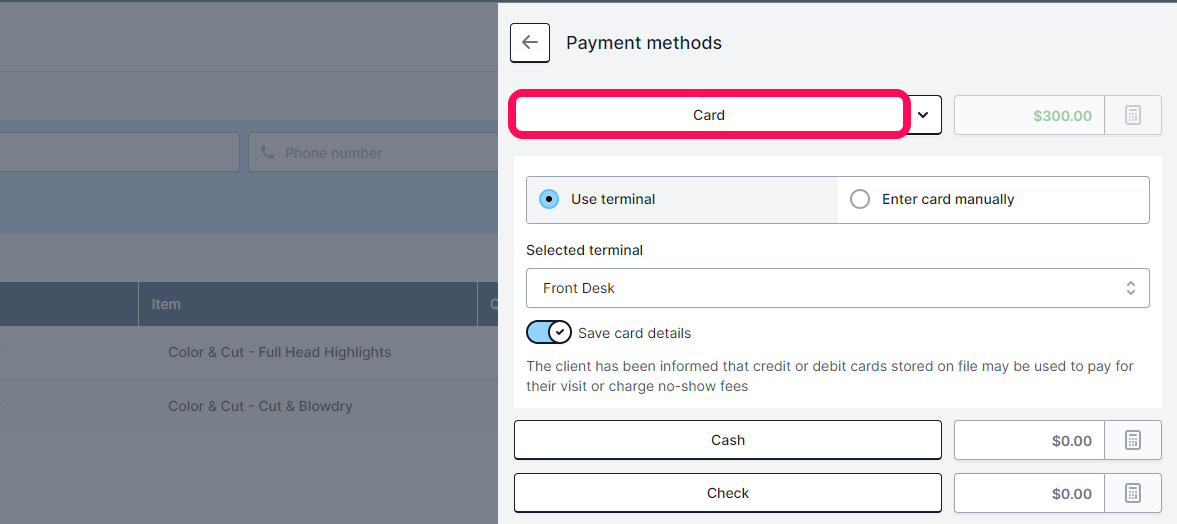

When processing a sale, use the Card payment type
Processing a Refund
To learn how to process full and partial refunds, check out this guide.
Processing a Split Payment
Click here for information on processing a split payment.
Other FAQs
Does the terminal work with PhorestGo?
Yes, the PhorestPay Card Terminal is compatible with both Android and Apple iOS devices.
For more information, click here.
Can I take tips using the terminal?
Yes, click here to learn how.
What is the PIN code to get into the terminal Settings menu?
The PIN for the Settings menu is 07139.
How do I connect the terminal to another/different WiFi connection?
Swipe your finger in from the left of your terminal screen, Press Settings, enter 07139 as the Admin PIN, and then click Network > WiFi.

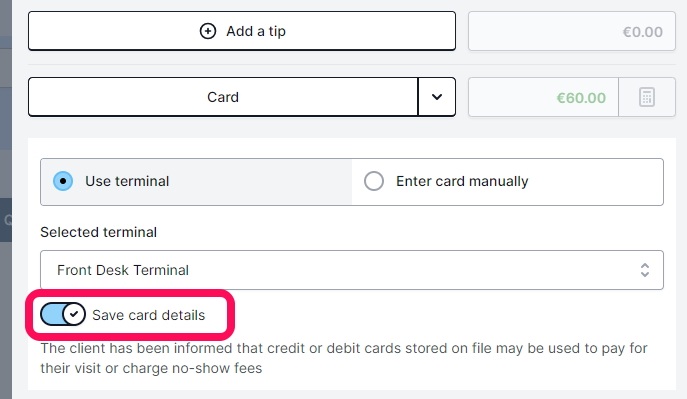

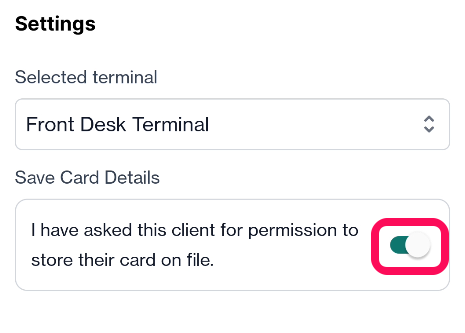

Can I save client card details?
Yes, you can choose to store a client's card details when processing a payment. However, it is essential to obtain the client's consent before saving their card details.
Phorest:
PhorestGo:
Saved card details with PhorestPay are powered by Stripe, which has the very highest security and Level 1 PCI Compliance. Neither you, your staff, nor Phorest staff have access to the raw card details at any stage.
You cannot save card details for Walk In clients.
Where can I see more information on each transaction?
Each transaction will appear under the Card Reader feature type on your PhorestPay payout export. For more information, click here.
Can I disable the beeping sound on the terminal?
Yes, the payment tone can be disabled. Check out this guide to find out how.
Can I change the display settings on the terminal?
Yes, click here to find out how.
Does the terminal print paper receipts?
No, the PhorestPay terminal doesn’t print receipts. However, if you have a separate receipt printer, paper receipts will still be printed there, and both a customer and merchant copy will always be printed.
You can also set up email receipts in Phorest if you prefer. For more information, click here.
Is there a minimum transaction total amount?
Yes, the sale total must be at least 0.50 or more.
Can clients use Apple Pay or Google Wallet?
Yes, Apple Pay and Google Wallet are supported.
What card brands are supported?
For a full list of supported card brands, click here.
How can I perform a factory reset on the Card Terminal?
Hold the power button and both volume buttons together for around 15 seconds to perform a full factory reset.
